MAIN FUNCTION
1 Servo and PLC control is adopted, with fast speed of order transferring and changing, and simple and easy to learn operation screen.
2 Manual knife sharpening method saves work and time.
3 The electrical appliances adopt well-known brands at home and abroad, with stable and reliable performance.

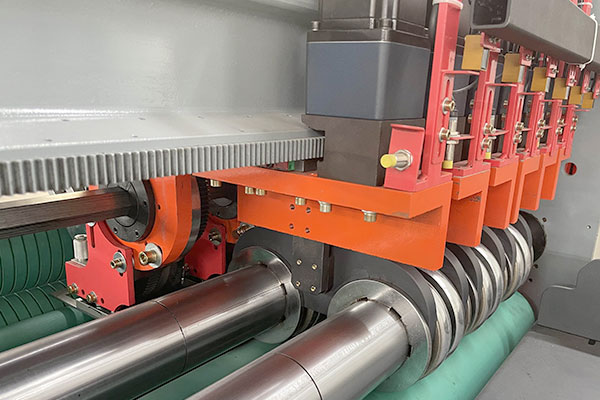

4 The slitting knife is made of tungsten steel alloy blade, with long service life. The slitting board has neat incision, no indentation and no burr.
5 Prepress, fine pressure, then cut (sun wheel press paper), finally glue shaft pull paper.
6 Presser line: prepress adhesive axis, fine presser optical axis, printing face down, no indentation.
7 The pressure line adopts the combination of pre-pressure and fine pressure, which does not burst the line, is easy to bend, and is linear and beautiful.
8 The blade transmission adopts imported synchronous belt, which is stable in transmission and low in operating noise.
9 Order changing time is 8-15 seconds.
MAIN PARAMETER
| Max slit width | 2500mm |
| Max speed | 200m/min |
| Slitter knife | 4 pieces(customized) |
| Scorer wheel | 6 sets(customized) |
| Min slit width | 180mm |
| Min scorer width | 150mm |
| Slit blade diameter | 230mm |
| Main motor(AC motor) | 7.5KW |
| Air pressure | 0.6-0.8Mpa |
| Order storage | 999 |
| Scorer wheel diameter | 185mm |
| Machine weight | 4500kg |
| Machine dimension | 3800x1250x2100mm |
