MAIN FUNCTION

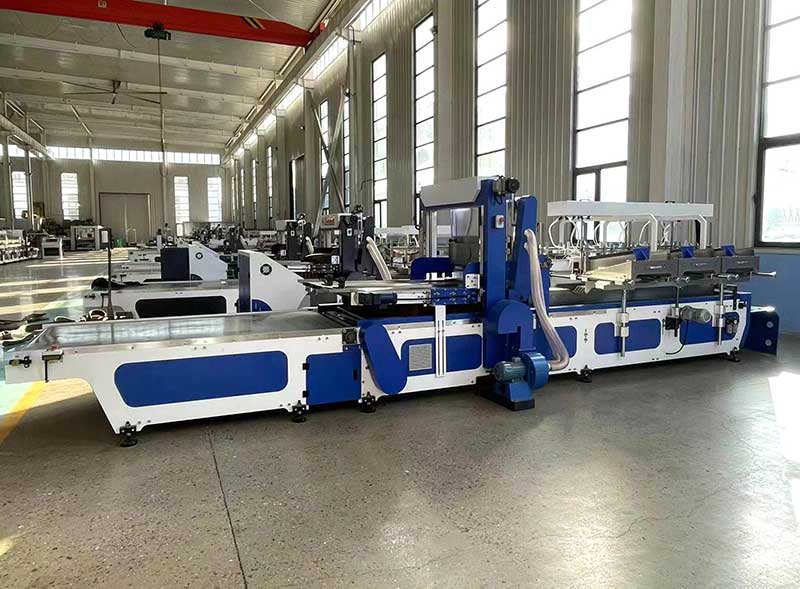

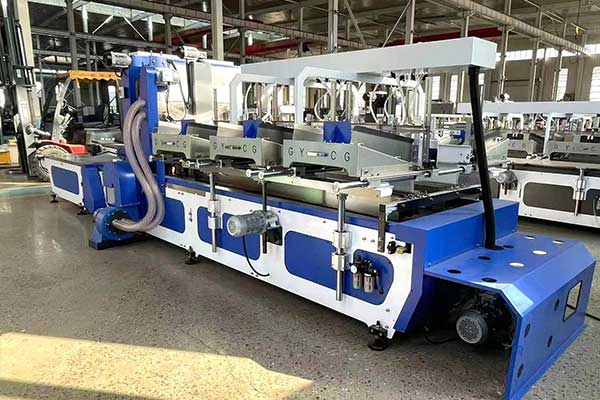

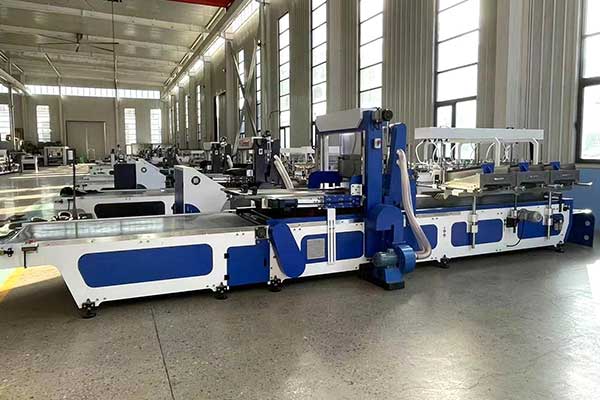

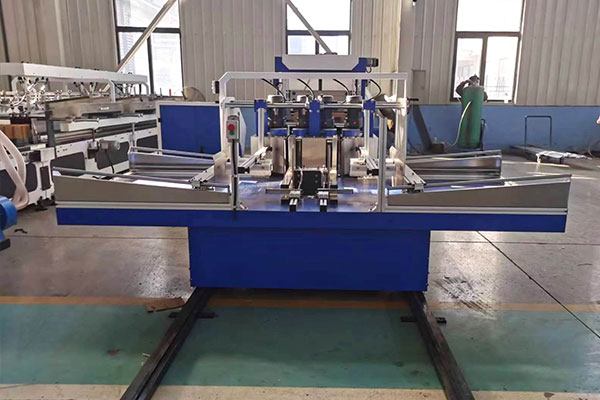

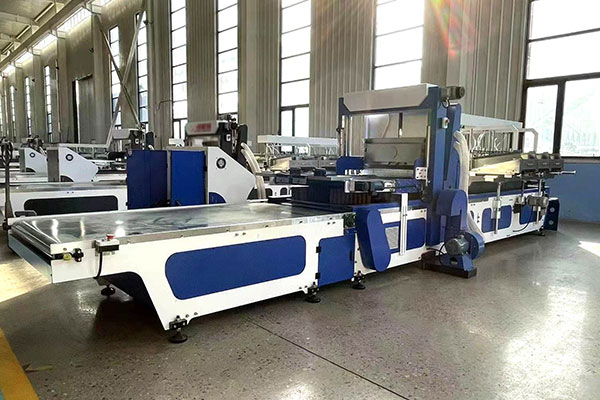

The machine is a new type partition inserting machine which combined with the advantages of domestic and overseas machines, and improved by our engineers. The machine adopts high quality material produced by advanced Technology, performance parameter is reached the domestic leading technology. It is best machine for fruits ,glass work, ceramics products and plastic products.
1.Vertical vacuum sucker adsorption for paper feeding
2.Landscape orientation using pneumatic feeding , accurate and quick
3. Longitudinal feeding shaft adopts electric lifting
4. Landscape orientation feeding worktable lifting adopts electric adjustment .
5.Electric adjust the clapboard height in landscape orientation .
6.Longitudinal and transverse to cross the two pieces of paper at the same time.
9.Suitable for the auto insertion of all kinds of carton clapboard.
8.Output in double work positions, high efficiency and energy saving.
10.Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control 11.Using compressed air storage tanks for gas centralized supply, gas
12.supply pressure stability, enough gas source.The gas devices get
13.the gas from the primary tracheal , independent control,no influence between each other .
14.Equipped with fault detection device, auto stop the machine when paper blocking .
15.PLC Touch screen input control is easy to operate.
16.Replace the traditional manual operation mode,decrease the labor cost and high efficiency.
17.All components and parts are adopt high quality material ,processed by precision equipment,prolong the service life
18.Advanced mechanical structure, easily adjust and save time,easily operation and maintenance
19. Purchased parts all adopt high quality brand products from domestic and overseas,to ensure the quality.
MAIN PARAMETER

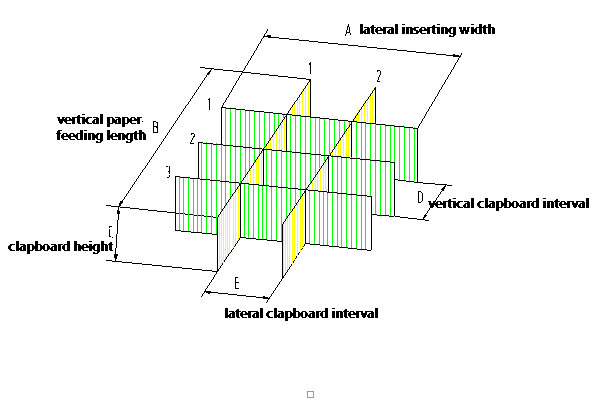

| Name | Unit | CGJ450-3L | CGJ600-3L |
| Horizontal inserting width: A | mm | 120~900 | 120~900 |
| Lengthways sheets length: B | mm | 210~450 | 210~600 |
| Clapboard Height: C | mm | 85~300 | 85~300 |
| Lengthways clapboard distance: D | mm | 20~400 | 20~500 |
| Horizontal clapboard distance: E | mm | 50-850 | 50-850 |
| Lengthways sheets No. | Pieces | 1-6 | 1-6 |
| Horizontal clapboard No. | pieces | 1-21 | 1-29 |
| Carton inserting mouth width：F | mm | ＞board thickness | ＞board thickness |
| Carton thickness:G | mm | 1.5~8mm | 1.5~8mm |
