MAIN SPECIFICATION
1. The feeding table has device for replenish table, which can work continuously. It will not stop operation and it owns high efficiency.
2. The front lay and the side lay can be adjusted automatically in terms of the size of the paper. It can be 3. adjusted easily, with high accuracy.
4. Using vacuum oxygen when the paper enter or be collected , which can eliminate gripper problem of the general automatic machine. It can used on common board E,B,A wave paper and plastic board
The delivery board has plate trailer, which works easily and with labor-saving. Outfit put paper counter can also be added.
5. With multiview electric eyes, the fault rate of the paper can be reduced. It is precise and safe, you can handle it with high proficiency.

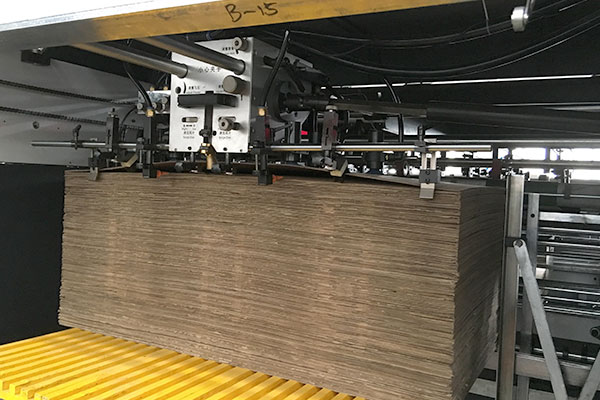

6. The feeder part has track device. When you make the board , it separates freely and conveniently.
MAIN PARAMETER
| SPECIFICATION/MODEL | YN-1100 | YN-1300 | YN-1500 |
| Max. cutting size(mm) | 1100×780 | 1300×900 | 1500×1000 |
| Min. cutting size(mm) | 540×360 | 650×480 | 650×550 |
| Thickness of cutting paper(cm) | Paperboard≤8mm Cardboard≥300g |
Paperboard≤8mm Cardboard≥300g |
Paperboard≤8mm Cardboard≥300g |
| Work efficiency(sheets/hour) | 1500~2100 | 1200~1500 | 1200~1500 |
| Total weight of machine(kg) | 7500 | 8500 | 9500 |
| Dimensions(L×W×H)mm | 6000×1930×2200 | 6450×2650×2200 | 6600×2800×2200 |
