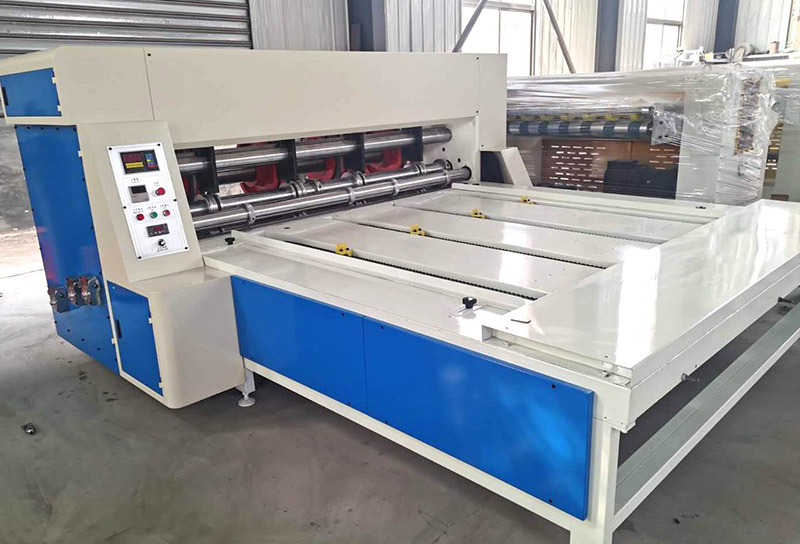

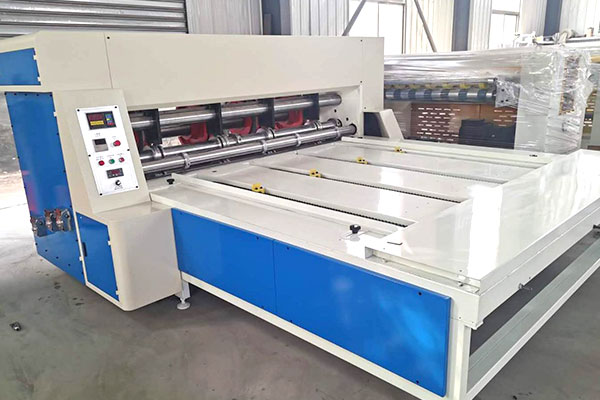

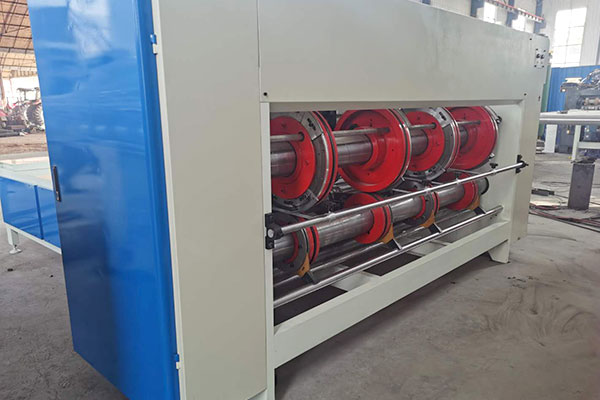

WX-D Series semi-auto carton box rotary slotting machine is for produce the regular standard carton box. The feeding unit adopt chain feeder. Manually feed the cardboard one by one. The feeding precision is better. The machine slotting unit can do the regular standard box, One time it can do slotting , creasing , slitting and flap cutting. The slotting size and box height size can be adjust by the tools
1.Chain push to feed the cardboard.
2.Equipped with the number counter , easy and clear for production. Start with the alarm bell ring, more safety.
3.One time it can do the slotting, creasing , slitting and flap cutting.
4.Slotting phase applies PLC control.
5.7mm alloy steel slotting knives with heat treatment

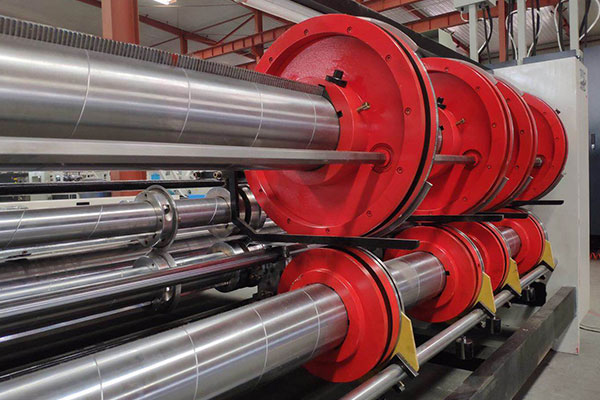

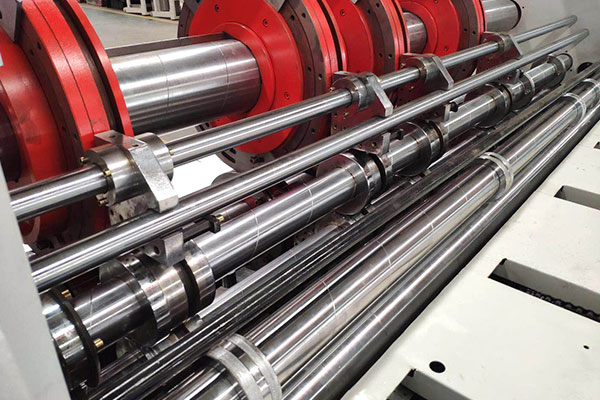

6.Up down Slotting wheel and creasing knives which is combined movement, Easy and save time to change the slotting orders
| Parameter | Unit | Model | ||||||
| WX-1224 | WX-1228 | WX-1424 | WX-1428 | WX-1624 | WX-1628 | |||
| Max cardboard | mm | 1200×2400 | 1200×2800 | 1400×2400 | 1400×2800 | 1600×2400 | 1600×2800 | |
| Min cardboard | mm | 360×700 | 360×700 | 380×700 | 380×700 | 420×700 | 420×700 | |
| Speed | Pcs/Min | 70 | 70 | 70 | 70 | 60 | 60 | |
| Cardboard thickness | mm | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 | |
| Slot interval | Positive | mm | 165×165 | 165×165 | 165×165 | 165×165 | 165×165 | 165×165 |
| Reverse | mm | 265×100 | 265×100 | 265×100 | 265×100 | 265×100 | 265×100 | |
(Size can be customized according to customer requirements)
