WHOLE MACHINE FEATURES

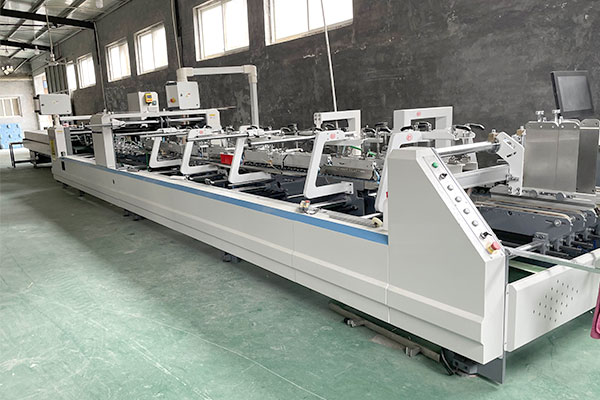

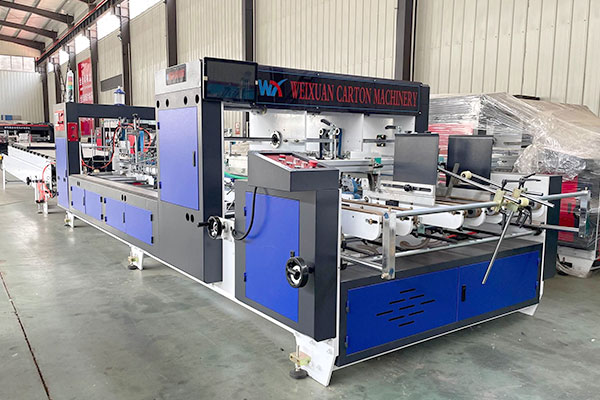

YN-GD series automatic multifunctional hook bottom pasting box machine is a heavy-duty model. The motor adopts dual-frequency control to stabilize and save power. The operation adopts double-sided tooth rod adjustment, which is simple and convenient; A plurality of belts with suction to ensure continuous and accurate paper feeding; Unique three – board pre – folding, so that more accurate feed paper; Provide upper and lower pasting bucket about two groups, suitable for a variety of products; The photoelectric counter can be used for quantitative counting, equipped with automatic kick plate device (optional automatic spraying device); Special materials are used to ensure the products are perfect. Suitable for general two-fold box, and 40%, 60% or 40% hook bottom; On the basis of the basic configuration of this machine, the auxiliary parts are added pertinence, which can adapt to all kinds of special boxes. The machine is mainly used for small packaging, such as cosmetics, medicine, wine box and other cardboard packaging, corrugated packaging. Easy to debug, easy to operate.
MAIN STRUCTURE

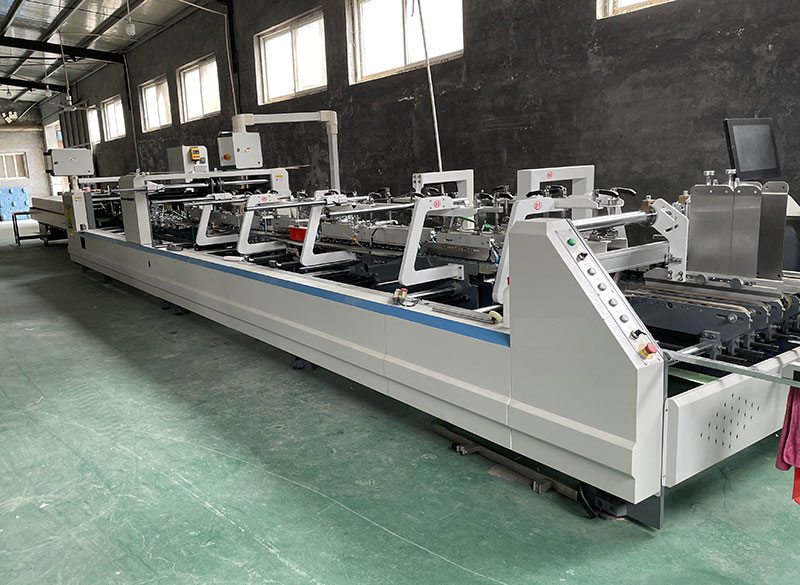

Complete machine structure: frame, automatic paper feeding device, front section conveying device, middle section conveying device, middle section pressing device, back section correcting device, side output device of finished product, electrical control device.
Automatic belt suction feed paper → automatic gluing → automatic folding → automatic correction → automatic pasting box → finished product output
MAIN PARAMETER

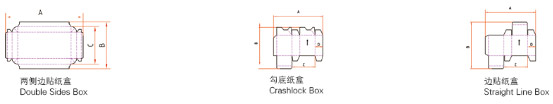

| Model | One side pasting box | Two side pasting box | Bottom lock box |
| Processing board | cardboard/A/B/E corrugated board | cardboard/A/B/E corrugated board | cardboard/A/B/E corrugated board |
| Max size | 1450×800 | 1450×800 | 1450×800 |
| Min size | 400×200 | 400×280 | 400×300 |
| Max belt speed | 0-250m/min | 0-250m/min | 0-250m/min |
| Power | 13.5kw | 13.5kw | 13.5kw |
| Machine weight | 8.8T | 8.8T | 8.8T |
FEEDER UNIT

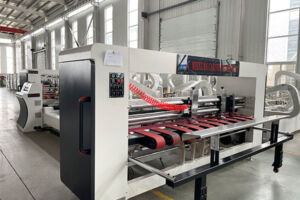

Six 30mm wide paper feeding belts with suction motor; 12mm metal plate transversely adjust the single plate and set the width independently. Embossed power guide wheel guides the paper belt. The left and right sides of the baffle, with the product style left and right to adjust; The paper feeding part is equipped with two paper knives to adjust the asymmetric length according to the real sample. The suction strength is controlled by the suction switch; The overall coordination completes the fast, simple, continuous, automatic and correct paper feeding; With constant speed adjustment to feed distance.
GLUE UNIT
The mechanical upper gluing tube is easy to operate, and the lower gluing tube is specially designed to accurately control the gluing amount, so as to ensure no gluing during high-speed operation. Easy to disassemble and clean. The rubber wheel is made of high quality stainless steel, which is not easy to be deformed.
PRE-FOLD UNIT
The prefolding part adopts the lengthened model to truly realize the prefolding of the carton at the first line of 180° and the third line of 135°, which is convenient for the carton to be opened quickly after stable prefolding.
BOTTOM LOCK UNIT
The bottom of the lock is dismountable with three plates, which can meet the requirements of various special-shaped boxes. The modularized lock bottom unit reduces the adjustment time of changing orders. Equipped with four sets of high elastic hook seat and bottom box module; The base and hopper are made of high quality pure copper material, simple and practical in design, convenient for gluing the bottom part of the lock.
FOLD UNIT
This fold can be suitable for various adjustment operations to accurately close the box sample.

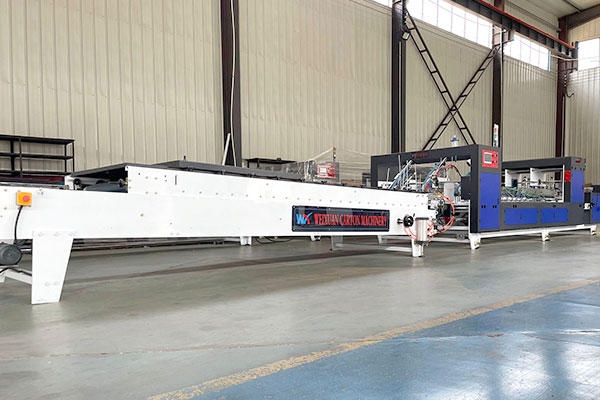

DELIVERY UNIT
The pressure transmission part is equipped with the belt tension automatic adjustment system; Continuous automatic box storage ensures that the boxes enter the conveying department in good order; The press wheel can be adjusted according to different box types and paper to make the box more perfect.
