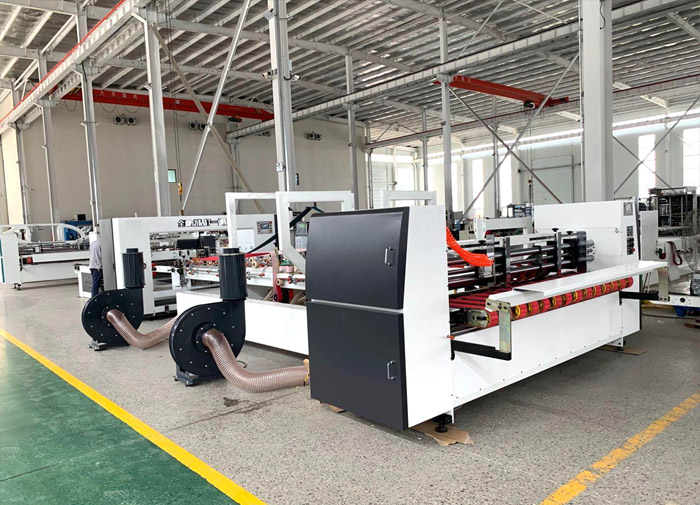

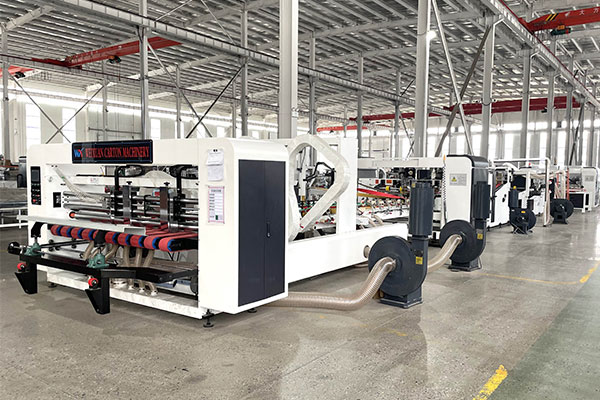

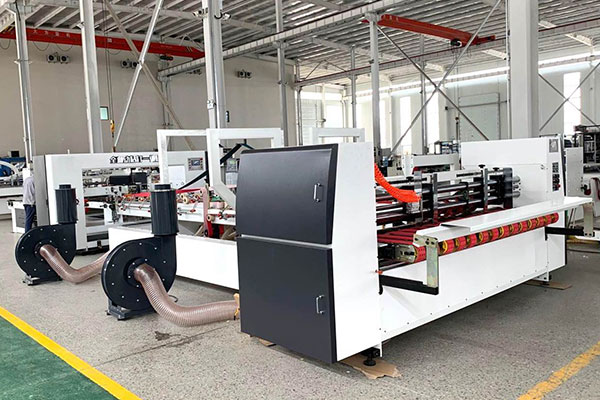

WX-QDJ series automatic carton box stitcher and gluer machine (single piece)

Youtube video link

www.youtube.com/watch?v=Suvb9mZLLbk

Automatic nail box machine, by the paper delivery department, folding department, box department three parts. Frequency control, simple and reliable operation. Digital display control, PLC computer amplitude modulation, dual frequency synchronous operation, with simple, fast, reliable and accurate control mode, automatic paper feeding, automatic stitching folding, automatic counting, automatic stacking output, high speed energy saving, saving labor costs.

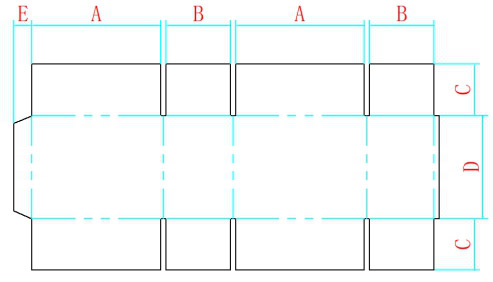

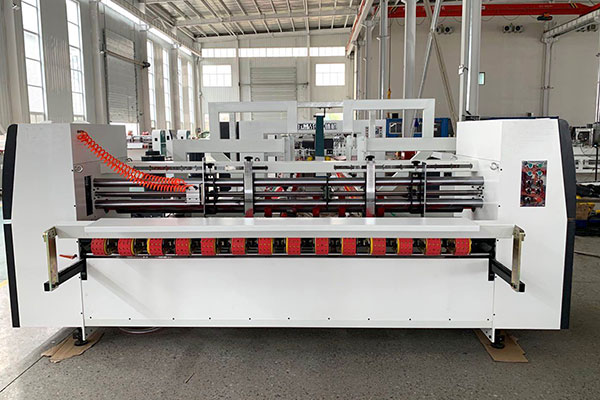

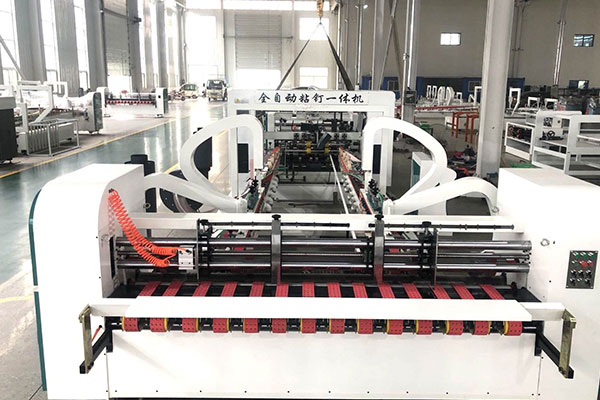

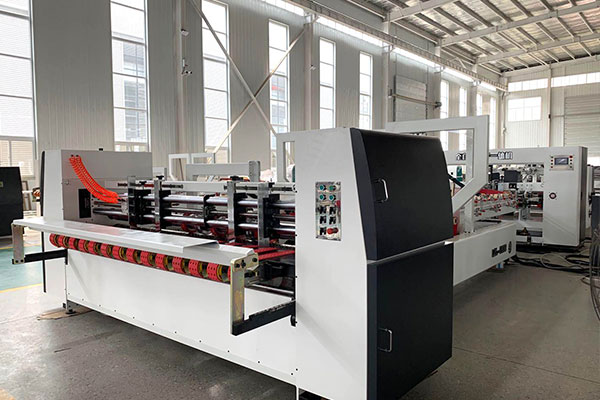

FEEDER UNIT

1. Adopt the lead edge belt absorption feeding accurate and reliable.
2.Adopt top grade electromagnetic clutch and electromagnetic brake system, for the individual control of feeding department.
3.The height of press-paper wheel can be adjusted, the suitable thickness of cardboard is 2-8mm.
4.The front baffle of feeding department and belt can be adjusted right and left.
5.pneumatic snap function of front baffle of paper feeding part
6. the paper supply department has the option of binding mode and gluing mode.

FOLDER UNIT

1.Belt suction paper feeding method, accurate and reliable.
2.The height of paper roller is adjustable.
3.the left and right car walls of the folding part can be adjusted
4.the lett and nght car walls of the folding part can be adjusted
5.It can effectively overcome the phenomenon of scissor mouth and fish mark in the traditional nailing and gluing process, and ensure the precision and quality of nailing and gluing.)
6.memory card function is adopted (encoder and transformer are used to control the precision accurately)effectively improve the quality level of folding box.

STITCHER UNIT

1.Double imported servo drive high precision,the brand is YASKAWA ,2.9KW,reduce the mechanical transmission part, and reduce the mechanical failure rate.
2.Stitching department adopt the touch screen operation. Parameter (stitching distance, number, species and back baffle) could change expediently.
3.Control system adopts Delta PLC control system.
4.All switches in the control box adopt Taiwan ShiLin.
5.Bottom die, blade made of pigeon steel (wear resistant)
6.The head of nail is made in guangdong,adopt with special steel, computer precious produce.
7.Switches and buttons adopt Taiwan Tiande.
8.change order in one minute very quickly, easy operation, no training
necessary. Suitable for single, double and strengthen nail.
9.automatic counter and easy for strapping.
10.stitching distance can reach to 100mm, which display and adjust on the touch screen. Can stitch whatever the carton have cover or not.
11.automatic adjust paperboard thickness.

COUNTER AND EJECTOR UNIT

1.With PLC programmable controller and touch screen digital control, the operation is simple, the action is reliable, input data without stopping, automatic counting, automatic stacking and regular output.
2.The main motor of the counting unit can be adjusted by frequency conversion, and the starting speed is stable and reliable.
3.Cartons are conveyed by belt with neat stacking at speeds of 0-140 m/min.
4. Striking cartons with beating boards has the function of rectifying deviation, and the deviation is very small.
5.Counting and putting forward adopt pneumatic mode, PLC point control, reliable action, accurate and fast.
6. The output part adopts synchronous pressing mode of bottom conveyor belt and upper pressing belt, so that the finished carton can be firmly adhered and neatly output without dislocation.
7.The stacking height is 5-20 sheets.
8. The upper pressing belt device of the counting stacking part can be adjusted up and down by electric power.
