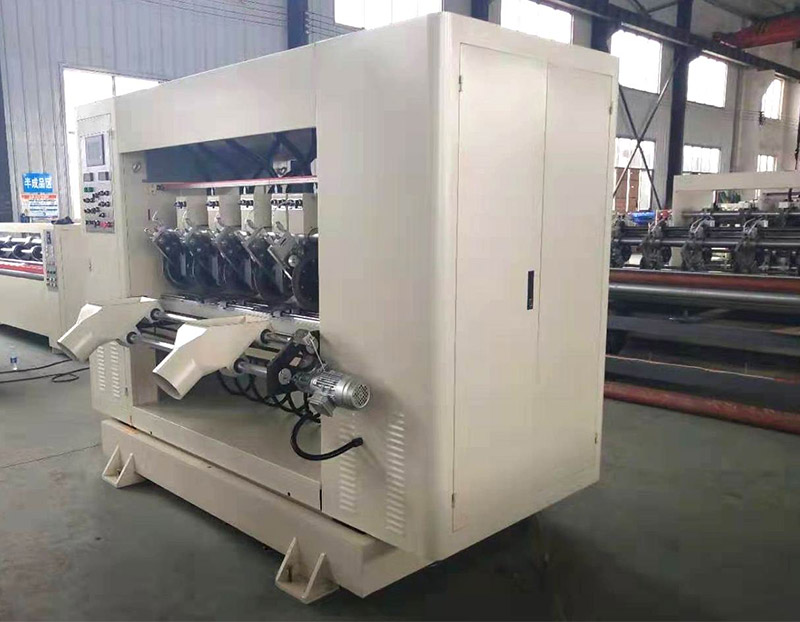

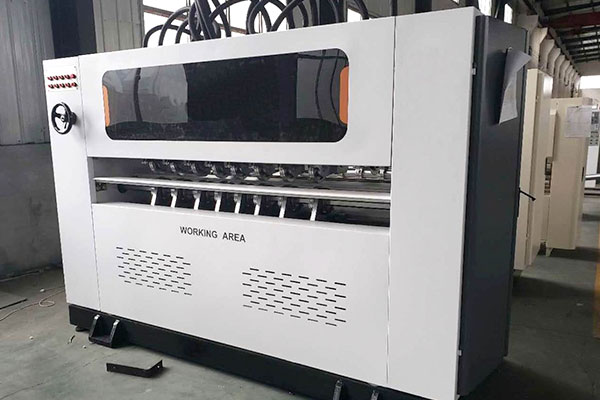

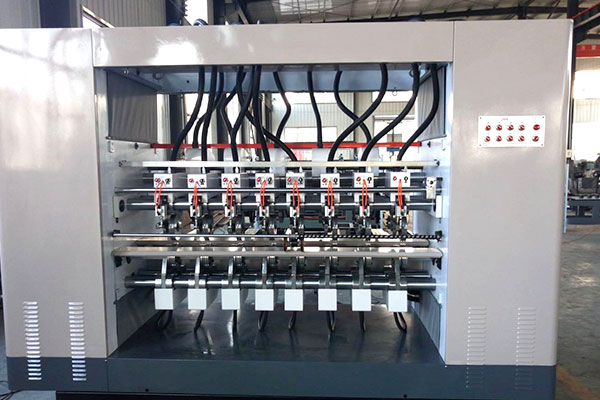

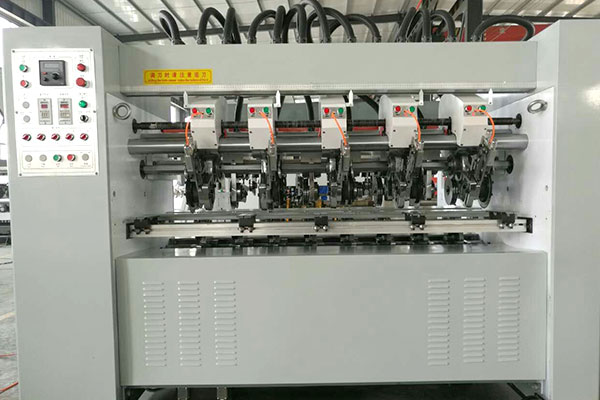

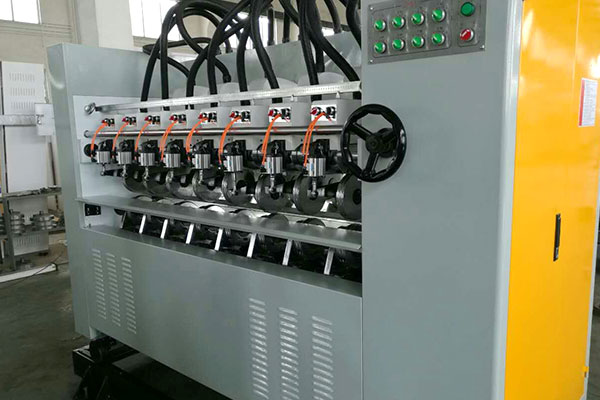

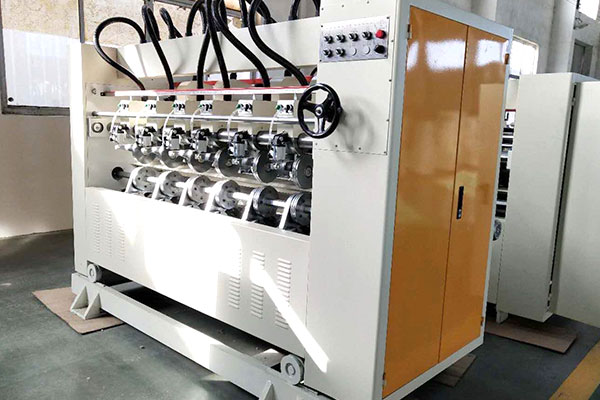

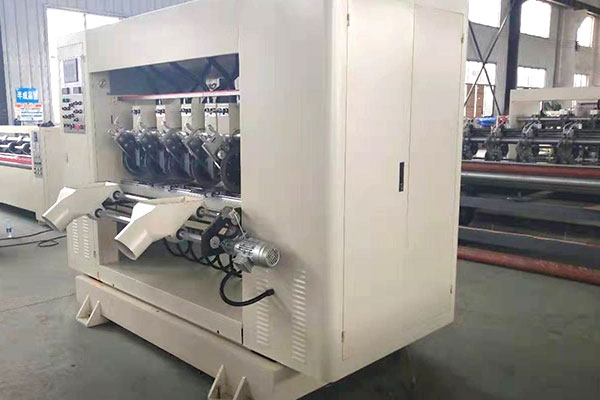

Main Specification
1. Motorized adjust the blade and motorized adjust the scorer wheel movement.
2. High quality tungsten alloy steel blade. Sharp and long work life. To slitting carton side is tidy, straight, smooth and non-crushable.
3. The blades can be sharpened either manually or automatically. Each blade can be controlled individually.
4. Automatic anti-deviating. the whole machine can be move left and right. to reduce much more waste products
5. Adopts novelty thin edge high speed paper cutting, the incisions are level up and velvet.
6. Auto-grinding edge system can be realized in the process of production, non-stop machine grinding edge, Pneumatic control grinding edge set. according to material and condition of hem, set the interval meter and the grinding time at any moment.
7. AC motor control, speed can be same with full corrugator line
Main Paramter
| Model: BFY-QDTA | 1800 | 2200 | 2500 |
| Design speed | 0-180 m/min | ||
| Efficient width | 1850mm | 2250mm | 2550 |
| Min. slitting width | 120mm | ||
| Min. creasing width | 120mm | ||
| Blade model | Φ260*158*1.3mm | ||
| Creasing roller model | 上（up）φ162mm下(down)φ162mm | ||
| Correction range | ±100mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power | 8kw | 10kw | 11kw |
| Depth of creasing | 0-12mm | ||
| Model: BFY-QDTB | 1600 | 1800 | 2200 | ||
| Design speed | 100 m/min | ||||
| Efficient width | 1650mm | 1850mm | 2250mm | ||
| Min. slitting width | 120mm | ||||
| Min. creasing width | 120mm | ||||
| Blade model | Φ200*122*1.3mm | ||||
| Creasing roller model | Φ162mm | ||||
| Correction range | ±100mm | ||||
| QTY of blade/scorer | 4/6 | 5/8 | 6/10 | ||
| Depth of creasing | 12mm | ||||
| Power | 8kw | 10kw | 11kw | ||
