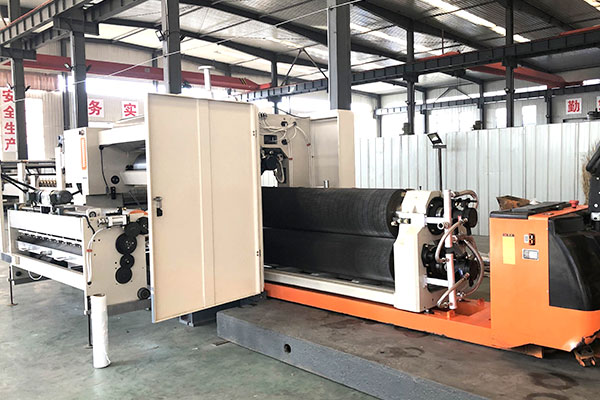

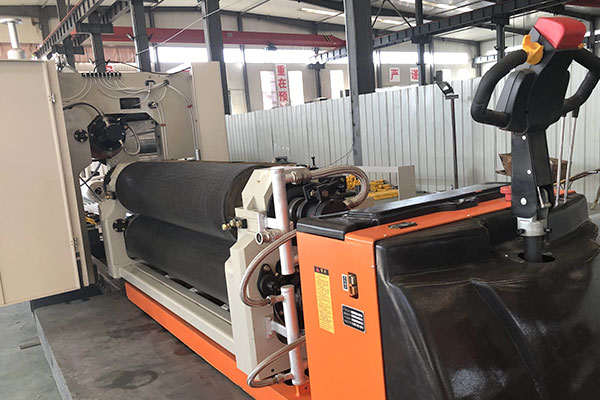

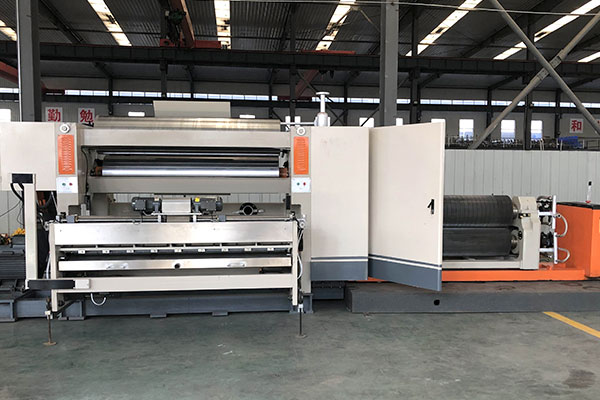

WX-SF-320E/360E/405E/500E series cassette type single facer machine

YouTube video link

https://youtu.be/i9lrWay4Be8
www.youtube.com/watch?v=BkJwowsR8kY

Main specification

1. Adopt negative pressure type design, so that the core paper can be uniformly pressed and attached to corrugated surface, evenly coated with glue to make the single corrugated corrugated paper better.

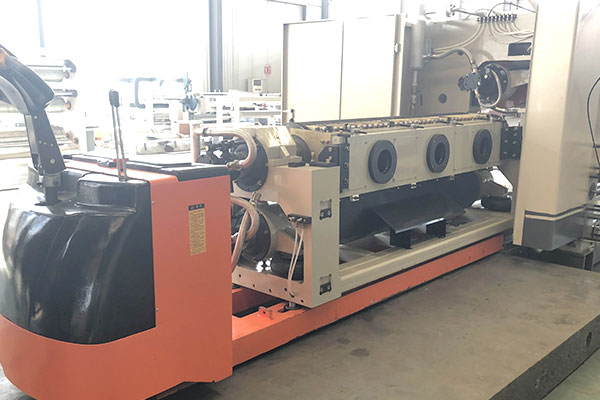

2. Fast change roller, 10 minutes, replace the corrugated roller with electric trolley, into the machine, fixed on the machine base, quick and easy to replace the corrugated roll.
3. corrugated roller adopt 48CRMO high quality alloy steel, after heating and grinding, tungsten carbide surface treatment is optional
4. Corrugated roller and pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.
4. Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops, prevent glue exhausted
5. the moveable type glue unit is convenient to clean and maintenance
6. easy operation control system, touch screen operation interface, Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
7. built-in pre-heater with proportional spraying device, adjustment the core paper temperature and moisture.

Main parameter
