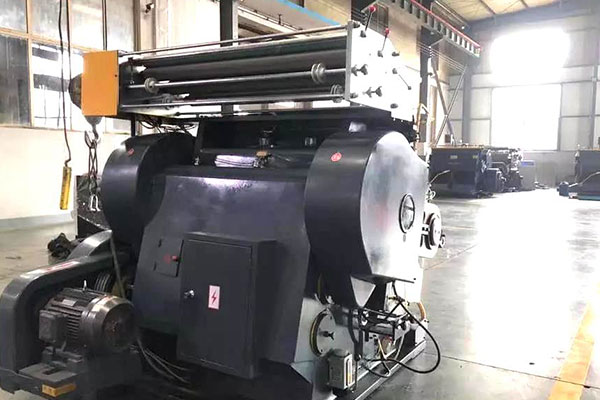

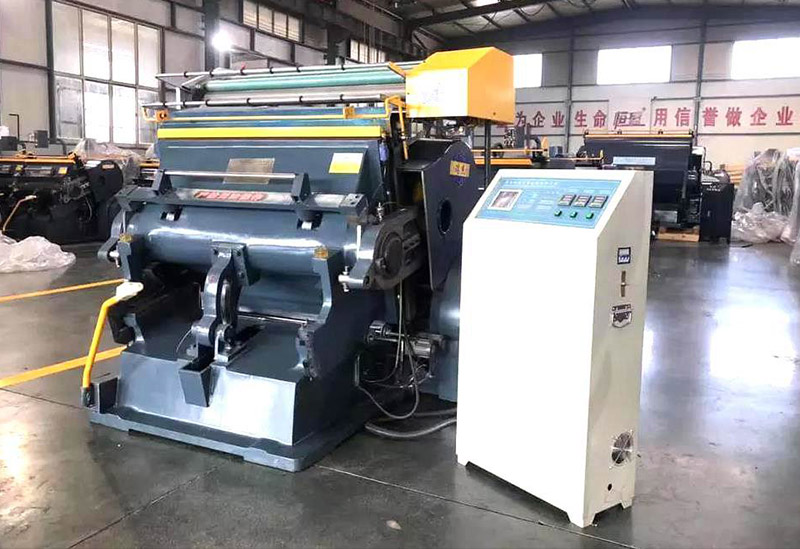

Manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customized product. Increasing and decreasing temperature accurately, changing stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model in embossing and creasing, suitable for many kinds of different weight cardboard.

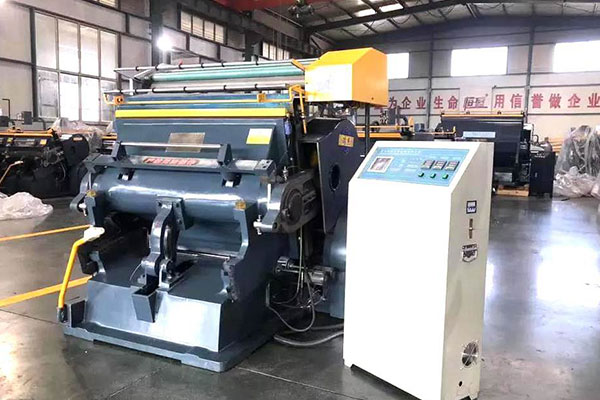

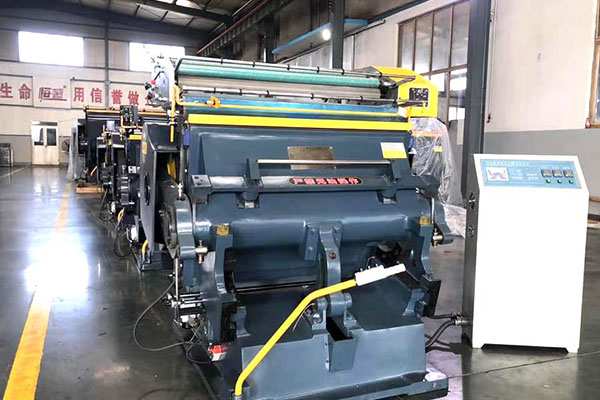

This series of die cutting hot stamping machines are special equipments for die cutting hot stamping a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration industries.
This machine has four insurance, four function.Insurance: Longmen insurance, Triangle insurance, Handle insurance, light-operated automatic insurance, This is more safe and reliable. Faction: single cut, delay, continuation, numeration.
Another ,braking clutch is electric chuck braking clutch, the feature are the sensitive brake, big insurance factor, strong safety performance, etc .The adjustable plate frame space template for upper, unloading board. And with standard: manual oil supply, concentration of oil supply or computer automatic injection allocation. We can manufacture variable frequency speed regulation
Structural Features
Sliding bearings are made of high quality alloy copper, thus to get effect of anti-friction and shake reduction.
High strength for one piece casing by using top-ranking material for machine body
With function of single, continuous cutting and opening delay operation, delay range is adjustable.
Safety system is reliable
Flywheel is with big moment of forth and large pressure.
Single plate electromagnetic clutch is sensitive and reliable
Operating position is reasonably arranged, moving-bed can be opened to its optimum
Standard configuration: manual oil-supplying device
Function: single cutting, time delay, continuous, numeration
Machine frame is of high-grade iron
PLC controlled foil settings and temperature management
Pull out foil holder for easy foil load and change
| Model | TYMB750 | TYMB930 | TYMB1100 | TYMB1200 | TYMB1300 | TYMB1400 | TYMB1500 |
| Max . die cutting size(mm) | 750×520 | 930×660 | 1100×800 | 1200×820 | 1300×920 | 1400×1000 | 1500×1040 |
| Max . foil stamping size (mm) | 740×510 | 930×640 | 1100*800 | 1200×820 | 1300×920 | 1400×1000 | 1500×1040 |
| Foil length(mm) | 520 | 640 | 800 | 820 | 920 | 1000 | 1040 |
| Moto power | 2.2Kw-6H | 4Kw-4H | 4Kw-6H | 4Kw-6H | 7.5Kw-6H | 7.5Kw-6H | 7.5Kw-6H |
| Power (Kw) | 10.2 | 16.5 | 20.5 | 20.5 | 28.5 | 28.5 | 28.5 |
| Weight (Kg) | 2200 | 3500 | 4700 | 5000 | 6500 | 7000 | 7500 |
| Speed (pcs/min) | 26±3 | 23±2 | 20±2 | 20±2 | 15±2 | 15±2 | 15±2 |
| Foil groups | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Heating area | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| Overall dimensions(mm) | 1450×1900 x1950 |
1800×1900 x2150 |
2150×2150 x2300 |
2150×2250 x2300 |
2200×2300 x2300 |
2300×2350 x2300 |
2400×2400 x2300 |
